LTZC Manufactures Bearings for Mining Shield Machines

As the core equipment in modern tunnel excavation, Tunnel Boring Machines (TBMs) are evolving toward larger diameters, higher power outputs, and increasingly complex operating conditions. Amidst this trend, TBM bearings play a particularly critical role; they not only bear the entire load of the cutterhead system but also directly influence the operational stability and service life of the entire machine. In extreme environments characterized by high impact, heavy loads, and severe corrosion, a single bearing failure can result in exorbitant repair costs and significant project schedule risks. Consequently, selecting a slewing bearing supplier with robust R&D capabilities and manufacturing prowess is of paramount importance to both equipment manufacturers and engineering contractors.

As a specialized manufacturer with years of deep expertise in the field of large-scale bearings, LTZC is dedicated to providing high-performance bearing solutions for mining and tunneling projects. Through continuous technological innovation, rigorous quality control, and the accumulation of extensive engineering experience, LTZC has established a mature product portfolio and comprehensive solution capabilities within the TBM bearing sector, enabling us to effectively meet the application requirements of diverse geological conditions and complex operating environments.

I. What Are Tunnel Boring Machine Bearings?

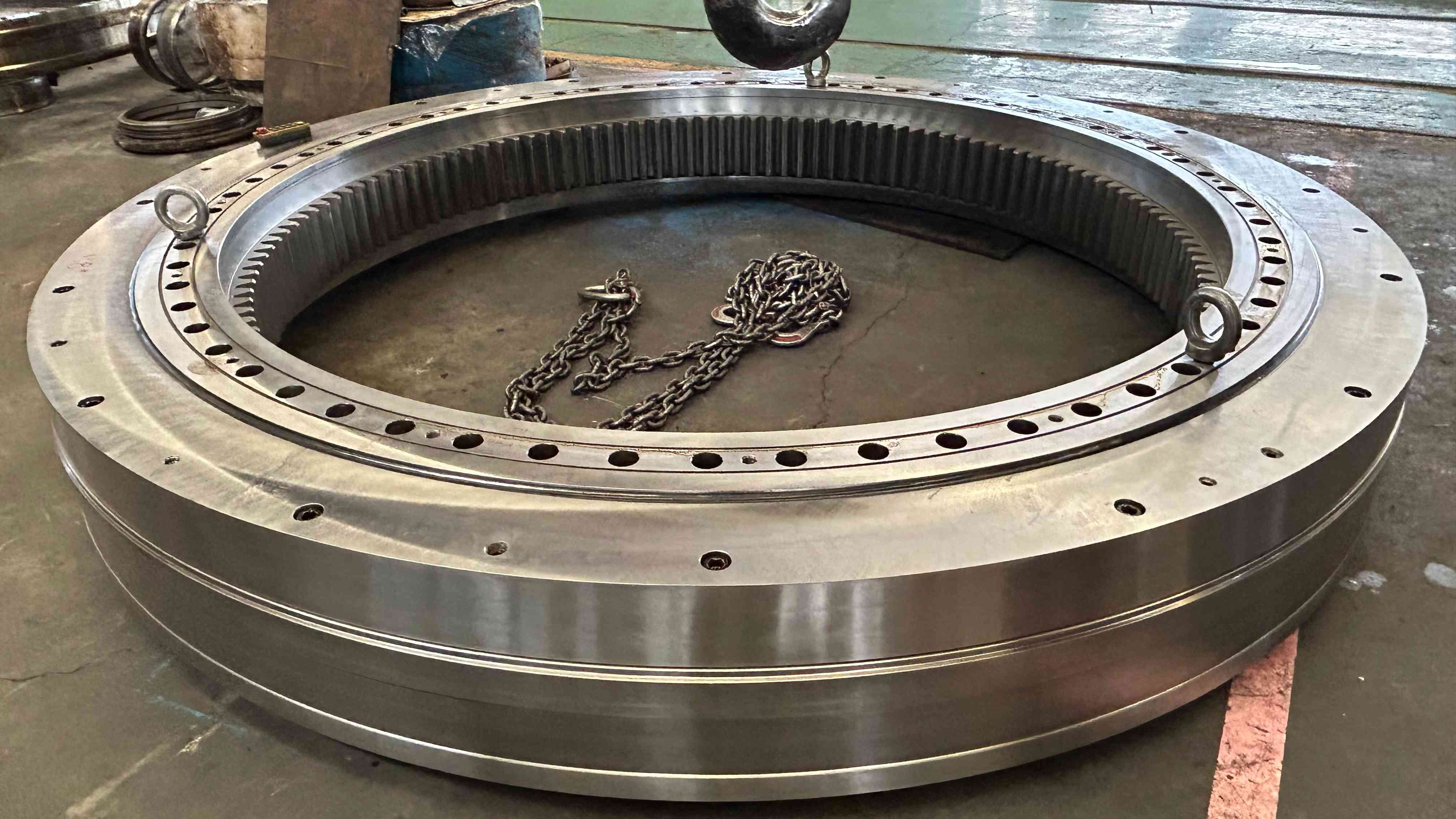

The Tunnel Boring Machine (TBM) is one of the most critical pieces of heavy equipment in underground tunnel construction, widely utilized in subway, railway, water conservancy, municipal, and mining projects. The slewing bearings used in TBMs are typically large-diameter or extra-heavy-duty bearings, serving the dual functions of providing rotational support and transmitting loads for the entire machine.

Structurally, TBM bearings generally fall into the category of heavy-duty turntable bearings, with diameters ranging from several meters to over ten meters. They primarily consist of an inner ring, an outer ring, rolling elements (balls or rollers), cages, sealing devices, and gear rings. Depending on specific operating conditions and requirements, they can be designed with single-row ball, double-row ball, triple-row roller, or cross-roller configurations.

1. Working Principle

The core function of a TBM bearing is to facilitate the stable rotation of the cutterhead, thereby enabling the tunnel excavation process. The TBM slewing bearing must withstand immense axial forces, radial forces, and overturning moments generated by the cutterhead, while ensuring that the cutterhead rotates smoothly and with minimal friction, even under heavy-load conditions.

During the tunneling process, the cutterhead continuously cuts through rock and soil strata, generating complex and highly fluctuating loads. Consequently, the bearing must possess not only a high load-carrying capacity but also exceptional resistance to impact and fatigue.

2. Operating Characteristics of TBM Bearings

High Loads: Capable of withstanding combined loads reaching thousands of tons.

Low Speed, Heavy Load: Rotational speeds are typically low, yet the applied loads are extremely high.

Frequent Impact and Vibration: Irregularities in rock strata result in significant impact loads.

Harsh Environments: Severe exposure to corrosive elements such as mud, water, and dust.

Difficult Maintenance: The cost of replacement after installation is prohibitively high.

Therefore, the design and manufacturing of TBM bearings must adhere to exceptionally rigorous standards of reliability.

II. Advantages of LTZC Shield Machine Bearings

As a professional supplier of slewing bearings, LTZC has accumulated extensive manufacturing experience in the fields of heavy machinery, port equipment, and mining. Each year, LTZC supplies hundreds of bearing sets for ultra-large-scale mining and tunneling equipment, having developed a series of high-performance solutions specifically tailored to the operating conditions of shield machines.

1. Design for Ultra-High Load-Bearing Capacity

By optimizing the arrangement of rolling elements and the contact angle design, LTZC has significantly enhanced the load-bearing capacity of its bearings. Furthermore, we employ a high-capacity triple-row roller structure—where each row is dedicated to supporting axial loads, radial loads, and overturning moments, respectively. Utilizing cylindrical rollers that form a linear contact with the raceways, this design creates a larger contact area, resulting in superior load-bearing strength. This structural design effectively addresses the extremely complex stress conditions encountered during shield tunneling operations.

2. High-Precision Machining and Heat Treatment Processes

Shield machine bearings demand exceptionally high precision. During the manufacturing process, LTZC employs advanced techniques—including precision turning and raceway grinding—to ensure raceway accuracy reaches the micron level. Additionally, through processes such as integral quenching or surface induction hardening, we enhance hardness and wear resistance, thereby guaranteeing the long-term, stable operation of the bearings.

3. Excellent Fatigue Resistance and Service Life

Through the optimization of raceway curvature, LTZC reduces contact stress; concurrently, by optimizing the lubrication system design, we minimize wear, thereby endowing our bearings with a significantly longer service life. In practical applications, LTZC shield machine bearings are capable of achieving tens of thousands of hours of stable operation, substantially mitigating the risk of equipment downtime.

4. Superior Sealing and Protection Capabilities

To address the challenges posed by mud, water, and dust prevalent in shield tunneling environments, LTZC has developed a multi-layer sealing system that effectively prevents the ingress of contaminants. LTZC also offers customized special sealing design services to meet specific requirements.

5. Customized Design Capabilities

LTZC offers deep customization capabilities tailored to the specific models and operating conditions of our clients' shield machines:

Diameter Range: From 1 meter to over 15 meters

Gearing Configuration: Internal gearing, external gearing, or gearless structures

Mounting Interface: Designed to meet the specific integration requirements of various equipment types

Lubrication System: Centralized lubrication or automatic lubrication systems

This high level of customization capability establishes LTZC as a vital partner for mining equipment manufacturers worldwide.

Contact LTZC for customizing bearing solutions

Tunnel Boring Machine (TBM) Bearings: Frequently Asked Questions (FAQ)

1. Why are TBM bearings prone to failure?

Common causes include insufficient lubrication, seal failure, improper installation leading to stress concentration, and operation under overload conditions.

2. How can one determine if a TBM bearing needs replacement?

If a TBM bearing exhibits abnormal noise or vibration during operation, sustained temperature rise, increased rotational resistance, raceway spalling, or cracks—upon detection—operations should be halted immediately for inspection.

3. What is the lubrication schedule for TBM bearings?

Typically, this varies depending on operating conditions: Heavy-duty conditions: Lubrication daily or per shift; General conditions: Lubrication weekly; Automatic lubrication systems: Continuous oil supply. LTZC recommends utilizing an automatic lubrication system to enhance reliability.

4. How can the service life of TBM bearings be extended?

First, it is essential to select the appropriate bearing model based on specific operating conditions; second, proper installation, regular lubrication, and routine maintenance are critical. LTZC provides comprehensive technical support to assist customers in maximizing bearing service life.

5. In which fields are LTZC TBM bearings applicable?

LTZC bearings are widely utilized in various sectors, including: subway and railway tunneling, mining operations, excavators, cranes, port machinery, and more. Their high reliability has been successfully validated in numerous large-scale projects.
