Successful Assembly of LTZC Three-Row Roller Gearless Slewing Bearing — Marine Crane

Client Requirement: Marine Crane — Three-Row Roller Slewing Bearing

The client for this project is a renowned European manufacturer of marine engineering equipment, specializing in the R&D and construction of offshore wind turbine installation vessels and large-scale floating cranes. Previously, the client relied exclusively on imported brands for their crane slewing bearings; however, they faced several critical procurement challenges:

Extended Lead Times:Overseas manufacturers faced tight production capacities, resulting in lead times of 6 to 12 months for customized products—a delay that severely disrupted the client's project schedules.

Delayed After-Sales Support: Given the remote operating environments typical of marine engineering equipment, the after-sales teams for imported brands were slow to arrive on-site. This resulted in high repair costs and substantial financial losses due to equipment downtime caused by malfunctions.

Insufficient Customization: Most imported products featured standardized designs, making it difficult to meet the specific installation dimensions, load parameters, and corrosion-resistance requirements of the client's custom-built, heavy-tonnage cranes.

Addressing these challenges, the client approached LTZC to jointly develop and manufacture a customized, gearless, three-row roller slewing bearing for marine cranes. The core technical specifications required were: an outer diameter of 2.5 meters, a rated load capacity of 500 tons, operational compatibility within an extreme temperature range of -20°C to +60°C, high resistance to salt spray corrosion, a gearless design, an assembly precision tolerance of ≤0.02 mm, and a service life of ≥100,000 hours.

LTZC Bearings — A Global Leader in Custom Heavy-Duty Slewing Bearings

Established in 1992, LTZC is a National High-Tech Enterprise and a proud member of both the China Bearing Industry Association and the Shanghai Crane Engineering Association. Specializing in the R&D, manufacturing, sales, and service of ultra-large, heavy-duty slewing bearings, the company operates a modern 10,000-square-meter production facility staffed by a team of 300 dedicated professionals.

The company's core product portfolio encompasses three-row roller slewing bearings, cross-roller slewing bearings, four-point contact ball slewing bearings, and thin-section bearings. With precision grades ranging from P0 to P4 and outer diameters spanning 0.2 to 13 meters, LTZC products are engineered to meet the rigorous demands of various heavy-load, high-precision, and extreme operating environments. Leveraging over 30 years of accumulated technical expertise and project experience, LTZC has exported its products to more than 20 countries and regions worldwide. The company serves key sectors such as offshore engineering, port machinery, mining equipment, wind power systems, and aerospace, having successfully completed over 310 major projects and served more than 769 global clients.

In the field of crane slewing bearings, LTZC offers comprehensive, full-lifecycle service capabilities—spanning everything from design and R&D, raw material procurement, precision machining, heat treatment, and surface treatment to precision assembly, on-site commissioning, and after-sales maintenance. This end-to-end capability allows LTZC to respond rapidly to customized client requirements, deliver "one-stop" solutions, break the monopoly held by overseas brands, and empower clients to achieve significant cost reductions and efficiency gains.

LTZC Customized Solutions for Three-Row Roller Slewing Bearings

Addressing the four core challenges of this project—heavy loads, high precision, superior corrosion resistance, and ultra-large-scale assembly—LTZC leveraged its dedicated R&D team and independent manufacturing facilities. By streamlining and optimizing its R&D, production, and assembly workflows, LTZC developed a customized three-row roller slewing bearing solution specifically tailored for marine operating conditions. This approach enabled the efficient realization of the product and the successful completion of the slewing bearing assembly, balancing product performance, delivery efficiency, and operational stability to perfectly meet the client's specific requirements for their crane slewing bearings.

1. Customized Three-Row Roller Structure

Combining the client's equipment parameters with an analysis of extreme offshore operating environments, the LTZC technical team executed targeted structural optimizations and material selections. The main body of the bearing is constructed from high-strength 42CrMo4 alloy structural steel, which undergoes quenching and tempering heat treatment to enhance its overall hardness and impact resistance, making it suitable for ultra-heavy-load conditions exceeding 200 tons. Adopting a mature three-row roller structural design, the bearing features three independent rows of rollers that effectively and uniformly distribute axial, radial, and overturning loads. This design successfully resolves industry-wide challenges associated with ultra-large-sized bearings, such as uneven load distribution and susceptibility to deformation.

To accommodate the gearless operation characteristics of the system, the team optimized the raceway precision and internal clearance, strictly controlling tolerances at the micron level. This ensures that the bearing operates smoothly, maintains precise positioning, and remains free of jamming or abnormal noises during gearless drive operation. Furthermore, the bearing is equipped with a multi-layer sealing structure and marine-grade multi-layer anti-corrosion treatments, meeting the C5-M marine corrosion protection standard and significantly extending the equipment's service life.

2. Standardized Precision bearings Manufacturing

Leveraging LTZC's production workshops, large-scale CNC precision equipment is utilized to machine the bearing raceways, mounting surfaces, and seal grooves, ensuring uniform component precision and an exceptionally tight fit. This process is complemented by mature CNC heat treatment techniques, which balance the bearing's hardness and toughness while enhancing its wear resistance and fracture resistance. Additionally, the bearings undergo specialized surface anti-corrosion treatments and salt spray testing to verify their durability in harsh environments.

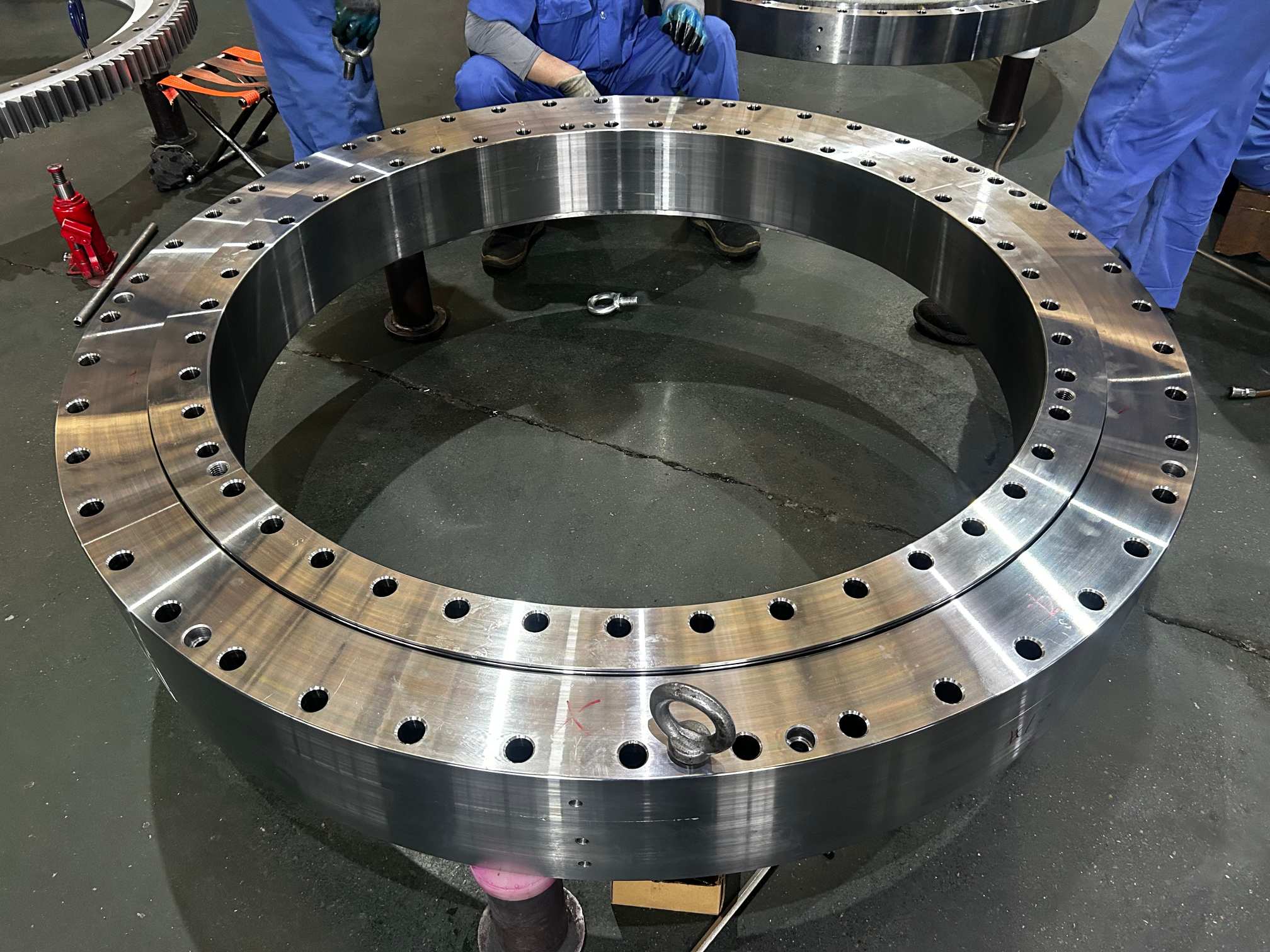

3 Meticulous Bearing Installation

The assembly of the slewing bearing is a critical stage that directly determines the bearing's operational stability and service life. LTZC conducts this process within dedicated assembly workshops, utilizing specialized lifting fixtures and precision inspection equipment, and executing operations according to standardized protocols under the supervision of a senior technical team with over ten years of industry experience. Prior to assembly, all components undergo comprehensive cleaning and a rigorous re-verification of their dimensional precision.

Throughout the entire assembly process, we adhere to standardized, high-precision protocols—strictly executing specialized procedures such as horizontal alignment, coaxiality correction, clearance fine-tuning, and diagonal-sequence tightening. We maintain precise control over the spacing of the three rows of rollers, the fit accuracy between the inner and outer rings, and the integrity of the sealing interface, thereby ensuring that overall assembly errors are confined to the micron level and perfectly harmonizing with the operational characteristics of the gearless bearing.

Upon completion of assembly, our team conducts a multi-dimensional series of factory performance tests—including no-load rotation tests, heavy-load simulation tests, full-assembly sealing integrity tests, and friction torque measurements. These tests verify that the bearing operates smoothly—free from jamming, abnormal noise, or uneven load distribution—and confirm that all performance parameters fully comply with both the client's custom specifications and the relevant industry standards for marine engineering. We issue a comprehensive suite of compliance reports, guaranteeing that the finished crane slewing bearing is ready for immediate installation and deployment in the most demanding operational environments, thereby successfully concluding this high-precision slewing bearing assembly project.
