What is a slewing ring used for?

A slewing ring, also known as a slewing bearing, plays a critical role in various industrial applications, providing rotational motion in machinery that requires heavy load capacity and precise movement. Slewing rings are essential components in cranes, excavators, wind turbines, medical devices, and other machinery requiring heavy-duty rotating functions. But what exactly are slewing rings, and why are they so important?

1. Characteristics of Slewing Bearings

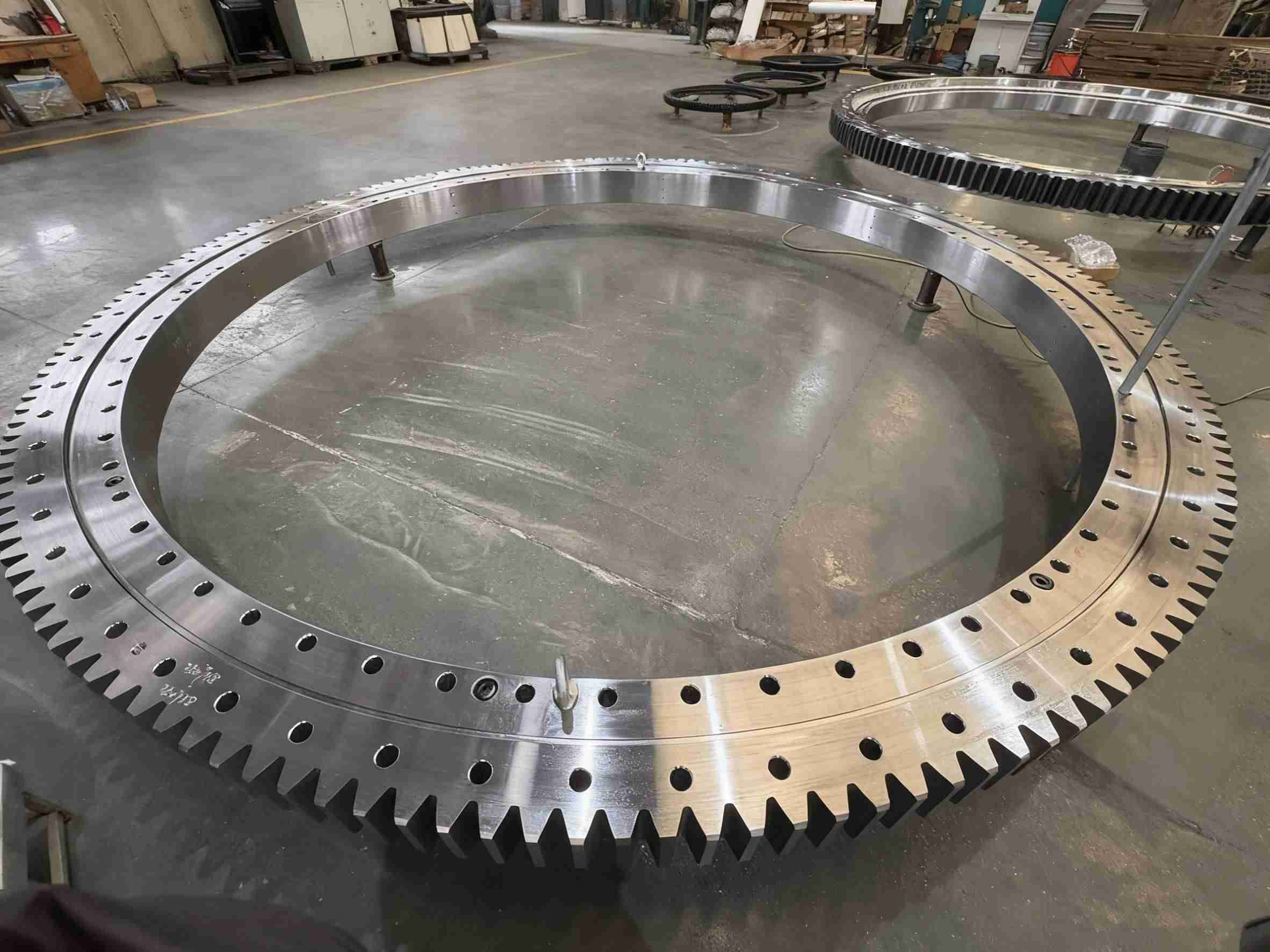

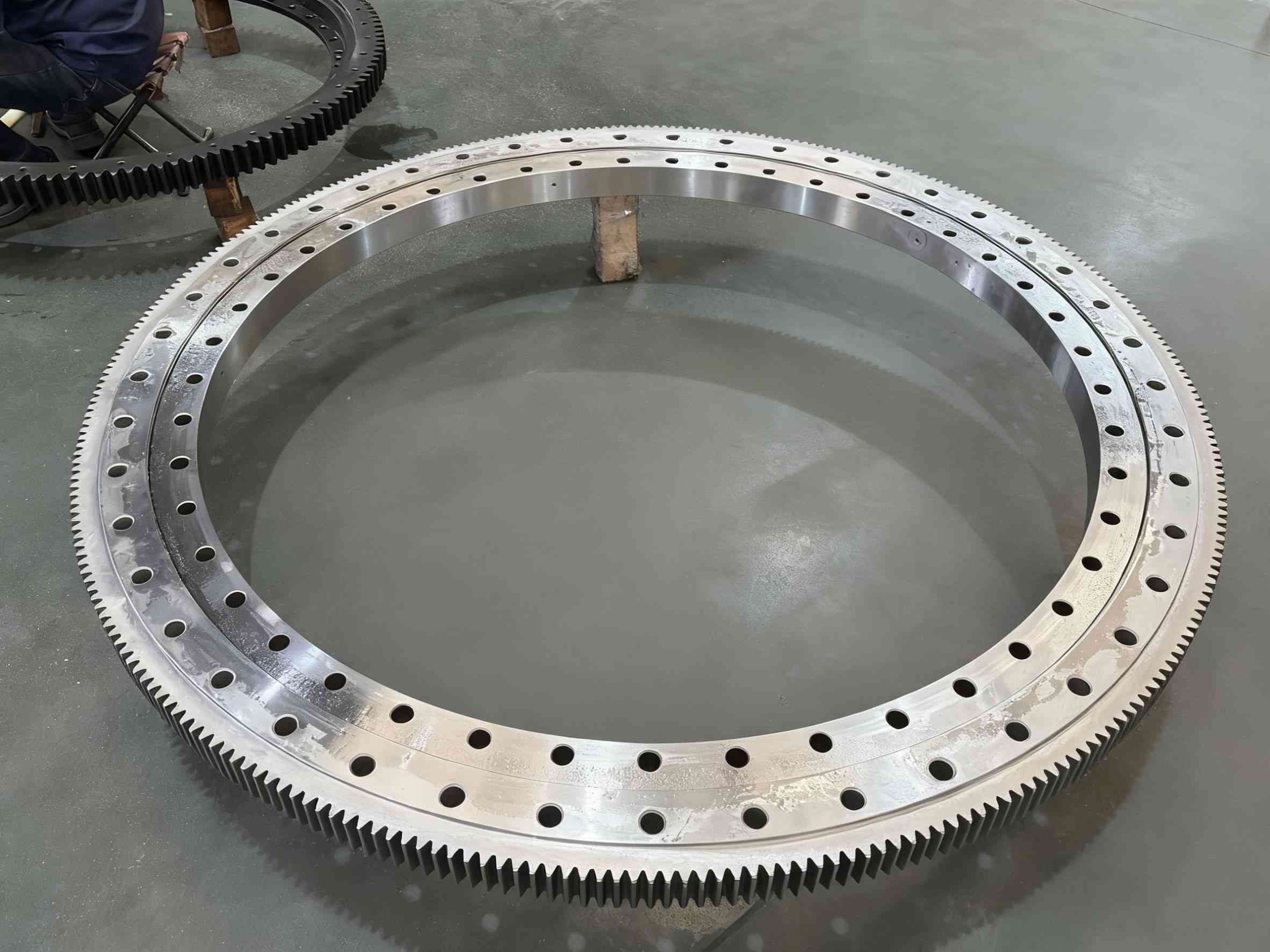

Slewing bearings (also known as slewing rings) are large, ring-shaped components available in internal gear, external gear, and gearless types, capable of simultaneously bearing axial, radial, and moment loads. They enable mechanical equipment to perform 360-degree rotation or oscillating motion, ensuring smooth and reliable operation of equipment across various industries. Some key characteristics of slewing bearings include:

Precision Design: Slewing bearings are designed to provide high precision and smooth rotational movement, with tolerance levels that minimize friction and wear.

High Load Capacity: These bearings are designed to withstand large radial and axial loads, making them ideal for heavy-duty applications in construction, mining, and aerospace industries.

Durability: LTZC provides maintenance and installation guidelines for slewing bearings. With proper maintenance, slewing bearings have a long service life, making them a cost-effective solution for industries requiring continuous and reliable operation.

Versatility: LTZC slewing bearings are available in various configurations and sizes, from 300mm to 12000mm, to meet the diverse application needs of everything from small machinery to large industrial equipment.

2. What are the types of slewing ring bearings?

Slewing ring bearings are classified according to their internal design and structure. There are four main types:

1. four-point contact ball slewing ring bearings:

These bearings use four-point contact between the balls and the raceways. This ball arrangement ensures that the bearing can withstand axial, radial, and overturning loads simultaneously. They are commonly used in:

Cranes:For precise rotation under heavy loads.

Excavators: Providing smooth movement for the upper structure.

2. Crossed roller slewing ring bearings:

Crossed roller bearings use cylindrical rollers arranged at right angles to each other. Compared to ball bearings, this design improves load distribution and provides higher load capacity. They are commonly used in applications requiring high precision, such as:

Medical equipment: Ensuring the accuracy of imaging or positioning systems.

Military systems: For heavy-duty, reliable movement.

3. Three-row roller slewing ring bearings:

This type of bearing has three rows of rollers, with each row bearing a different load. This structure is ideal for applications requiring high load capacity and smooth operation in harsh environments. Common uses include:

Large wind turbines: For rotation between the rotor and the nacelle.

Mining equipment: In harsh conditions, these bearings are crucial for equipment stability.

4. Single-row ball slewing ring bearings:

This type is ideal for applications with lighter loads and less demanding rotational accuracy requirements. They are commonly found in small machinery and simple equipment, such as:

Agricultural machinery: For basic rotational tasks.

Small cranes: Applications that do not require heavy load capacity.

Custom and Hybrid Solutions:

LTZC, as a leading slewing bearing supplier in China, offers customized slewing ring bearings to meet specific operating requirements, such as different load capacities, sizes, or design features (e.g., sealed or open type).

3. Applications of Slewing Bearings

Slewing bearings are essential in industries that rely on heavy machinery or require smooth, reliable rotational movement. Some of the most common applications include:

1. Construction Equipment:

Slewing bearings are used in heavy machinery like cranes, excavators, and pile drivers. Their ability to support both axial and radial loads while allowing smooth rotation makes them a critical component in:

• Tower Cranes: Enabling precise rotation for lifting heavy loads.

• Excavators: Supporting the rotation of the upper structure for efficient digging and material handling.

2. Wind Turbines:

In wind turbine applications, slewing bearings support the rotation of the nacelle, which houses critical components such as the gearbox and generator. The bearing allows the nacelle to adjust its position in response to wind direction, optimizing energy production.

3. Marine and Offshore Applications:

In the maritime industry, slewing bearings are used in equipment like radar systems, cranes, and ship-to-shore containers. Their corrosion-resistant materials ensure they function in harsh, saltwater environments. Slewing bearings are also vital in:

• Offshore Rigs: For positioning and turning large structures.

• Ship Cranes: For lifting containers in harbors.

4. Mining and Heavy Machinery:

Mining equipment, such as draglines, bucket-wheel excavators, and conveyors, rely on the durability and load-bearing capabilities of slewing bearings. The rough, high-impact environments require bearings that can handle extreme conditions while ensuring smooth operation.

5. Medical Equipment:

Slewing bearings are used in medical devices like imaging machines, robotic surgery equipment, and patient positioning systems. The high precision and smooth movement they provide are essential in medical applications, where accuracy is critical.

6. Robotics and Aerospace:

Slewing bearings are increasingly used in robotics, aerospace, and defense industries for precise motion control. In these sectors, the ability to manage both static and dynamic loads while maintaining rotation speed is critical for system performance.

4. LTZC Slewing Bearing Solutions

At LTZC, we specialize in providing high-quality slewing bearing solutions tailored to meet the diverse needs of industries worldwide. Whether you require a bearing for a crane, wind turbine, medical equipment, or other heavy-duty machinery, LTZC offers a range of slewing bearings that deliver exceptional reliability and performance.

Why Choose LTZC Slewing Bearings?

• Customizable Solutions: We understand that every application is unique. LTZC offers customizable slewing bearings to meet specific load, size, and operational requirements.

• Advanced Manufacturing: Our bearings are manufactured using the latest technology and high-quality materials, ensuring long-lasting and dependable performance.

• Global Reach: With decades of experience in international trade and supply, LTZC delivers slewing bearings to industries worldwide, helping businesses optimize performance and reduce downtime.

• Expert Engineering Support: Our engineering team is available to assist with design and application-specific recommendations, ensuring that you get the right slewing bearing for your needs.
