LTZC Slew Drive for Solar Tracker: Reliable Field Application

The global shift toward new energy sources represents a major trend in modern energy development, with solar, wind, and hydroelectric power standing as key forms of renewable, clean energy. Solar power generation systems, in particular, serve as a core pillar in the transition of the global energy structure. These systems encompass a wide variety of types—including ground-mounted power stations, distributed photovoltaic projects, and solar installations adapted for agricultural, desert, or mountainous terrains—and consequently, market demand for solar tracking systems is experiencing rapid growth.

While traditional fixed-mount brackets feature a simple structure, their inability to automatically adjust their angle in response to the sun's changing position results in limited power generation efficiency. In contrast, tracking systems equipped with high-performance Solar Tracking Slewing Drives utilize precise rotational control to ensure that photovoltaic modules consistently maintain the optimal angle for light absorption, thereby significantly boosting both power output and return on investment.

As a specialized manufacturer of slewing drives, LTZC has dedicated itself for many years to the R&D and manufacturing of slewing bearings, slewing drives, and heavy-duty rotary transmission systems. Leveraging extensive manufacturing expertise, a rigorous quality assurance system, and comprehensive global project service capabilities, LTZC delivers stable and reliable slewing drive product solutions to the solar energy industry.

I. What is a Solar Tracking Slewing Drive?

1. Definition of a Solar Tracking Slewing Drive

A Solar Tracking Slewing Drive is an integrated rotary transmission device designed to track the sun's angle. It serves as the core actuator within a solar tracking system and typically consists of the following components:

Slewing bearing

Worm gear transmission mechanism

Housing assembly

Sealing system

Drive motor interface

Anti-corrosion protection structure

Its primary function is to utilize a motor to drive the rotation of a worm, which in turn drives the internal gear ring and slewing bearing. This action causes the solar module array to rotate to a preset angle, thereby enabling continuous, all-weather solar tracking operation.

II. Why Must Solar Trackers Use Slewing Drives?

Solar tracking systems operate outdoors over extended periods and must withstand a range of environmental challenges, including exposure to high temperatures, sand and dust erosion, and adverse weather conditions such as rain and snow; furthermore, they require continuous, long-term operation. Standard transmission mechanisms often struggle to simultaneously balance load-bearing capacity, service life, and protective performance. In contrast, slewing drives offer the following distinct advantages:

Simultaneous capacity to bear axial loads, radial loads, and tilting moments

Compact structure with a small footprint

Stable transmission and precise control

Strong self-locking capability and excellent wind resistance

Low maintenance requirements

Long service life

Consequently, the slewing drive has become a standard component in modern solar tracking systems.

III. Application of the LTZC Single-Axis Slewing Drive in Solar Energy Projects

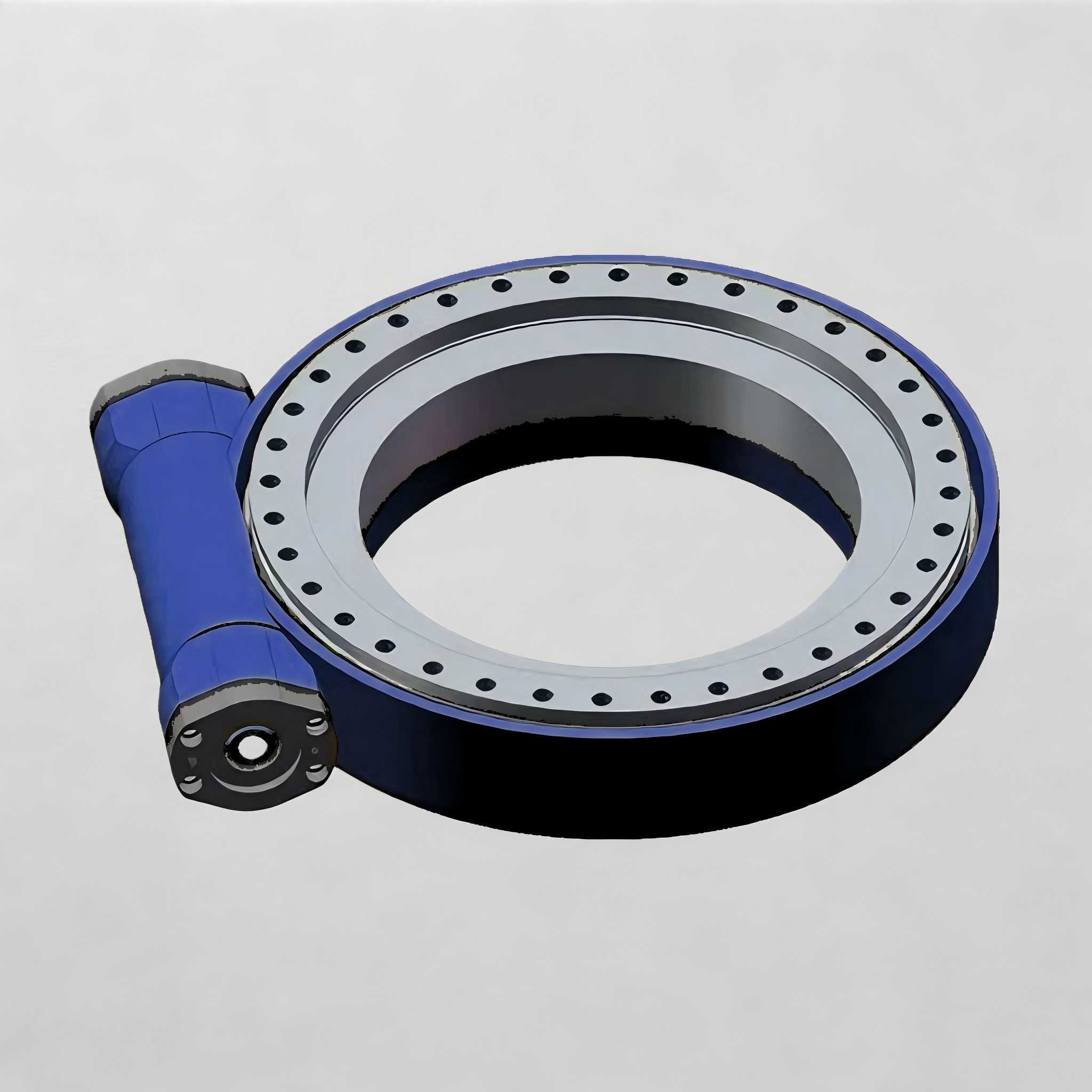

1. What is a Single-Axis Slewing Drive?

The Single-Axis Slewing Drive is an integrated, precision rotary transmission device specifically designed for Single-Axis Solar Tracker systems. Used in conjunction with a slewing bearing, it is capable of generating high output torque and facilitating rotary motion to execute solar azimuth tracking in a single direction.

Key Features of the Single-Axis Slewing Drive:

Simple installation structure with standardized interfaces and clear positioning datum points.

Integrates the slewing bearing, reduction mechanism, sealing system, lubrication system, and mounting housing into a single unit, functioning as a standalone modular component.

Comprising a single worm gear and a single slewing bearing, it requires only unidirectional angular rotation; this ensures stable operation, ease of maintenance, and low maintenance costs.

2. Performance Characteristics of the LTZC Single-Axis System

Capable of driving the synchronized movement of multiple rows of solar modules, making it ideal for long, interconnected racking systems.

High load-bearing capacity and superior wind resistance.

The self-locking mechanism of the worm gear maintains the stable positioning of the solar modules during strong winds, thereby mitigating system risks.

High positioning accuracy and minimal tracking error effectively enhance solar energy capture efficiency.

Utilizes a high-quality lubrication system and sealing structure, enabling reliable, continuous operation in outdoor environments over extended periods.

3. Real-World Project Application Case Study

A 100MW overseas photovoltaic project utilized the LTZC Single-Axis Slewing Drive:

Project Location: A hot and arid region.

Abundant solar radiation resources.

Characterized by a high annual frequency of strong wind events.

Following the deployment of the reinforced drive units provided by LTZC, the system has operated with exceptional stability, achieving a 15% to 22% increase in power generation efficiency compared to fixed-tilt racking systems.

IV. The High-End Application Value of the LTZC Dual-Axis Slewing Drive

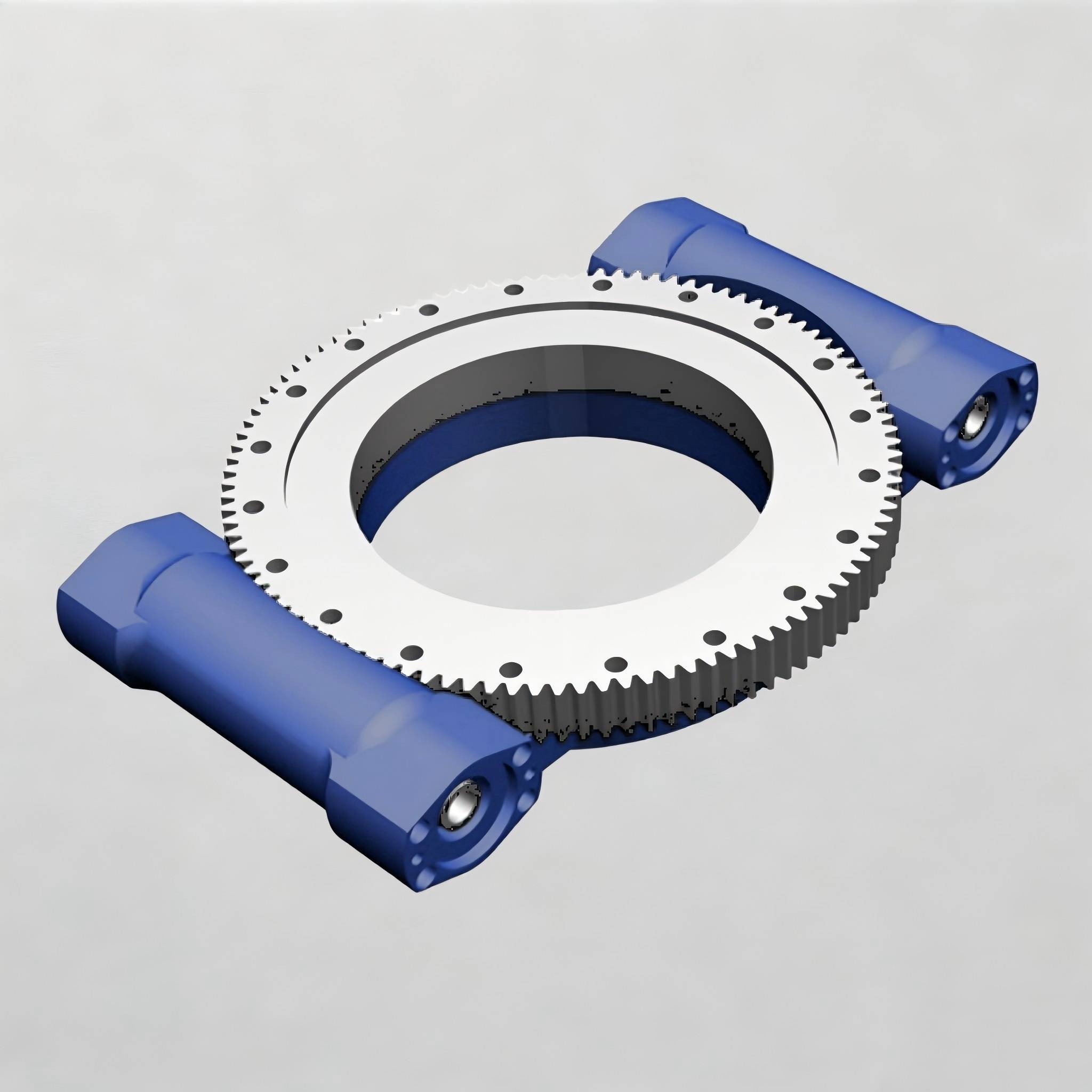

1. What is a Dual-Axis Slewing Drive?

A dual-axis slewing drive is a rotary drive system capable of adjusting both horizontal azimuth and vertical elevation angles. It dynamically adjusts these angles in response to changes in solar altitude, enabling real-time solar tracking to maximize power generation efficiency. This technology has found comprehensive application within solar tracking systems.

2. Advantages of Dual-Axis Systems

The dual-axis system is the only tracking configuration capable of simultaneously tracking both solar azimuth and elevation angles. This allows photovoltaic modules to maintain an angle nearly perpendicular to incoming sunlight, thereby maximizing light reception efficiency.

Dual-axis systems can significantly compensate for angular deviations via the elevation axis, demonstrating exceptional adaptability across different latitudes. They accommodate a wider latitudinal range, offering particular value in high-latitude regions.

They offer superior tracking precision, making them ideally suited for Concentrated Solar Power (CSP) and Concentrated Photovoltaic (CPV) applications.

3. Key Features of the LTZC Dual-Axis Product

Transmission System: Independent dual-worm gear drive with high-precision self-locking capabilities.

Load-Bearing Performance: Handles heavy-duty compound loads; delivers high torque output; maintains stability under extreme operating conditions.

Precision and Control: Microsecond-level response time with full closed-loop precision control.

Environmental Adaptability: Suitable for deployment in desert, coastal, and high-altitude/frigid regions.

4. Application Scenarios

The LTZC dual-axis slewing drive is widely utilized in:

High-end solar tracking power plants

Agrivoltaic systems (solar-agriculture integration)

Projects situated in complex mountainous terrain

Scientific research solar platforms

Integrated smart power stations featuring energy storage capabilities

Requesting a quote for a dual-axis slewing drive.

V. Key Technical Analysis of the LTZC Solar Tracking Slewing Drive

1. Worm Gear Self-Locking Technology

When the motor stops operating, the worm gear structure prevents reverse rotation, ensuring that the assembly remains securely positioned and is not displaced by strong winds. This is critical for the safety of solar power plants.

2. High-Strength Gear Surface Heat Treatment

LTZC subjects critical gears to heat treatment for reinforcement, enhancing their load-bearing lifespan and wear resistance to ensure long-term transmission stability.

3. Sealing and Dust-Proof System

Specifically designed for desert and sandy environments, LTZC offers enhanced sealing solutions to prevent impurities from entering the internal mechanism and exacerbating internal wear.

4. Anti-Corrosion Coating System

Suitable for coastal and high-humidity regions, this system extends the service life of the equipment

VI. Why Do Global Customers Choose LTZC as Their Slewing Drive Manufacturer?

1. Strong Customization Capabilities: LTZC offers tailored solutions—including customized torque, mounting dimensions, and protection ratings—to meet the specific operational requirements of each client's project.

2. High Cost-Effectiveness: While maintaining uncompromising quality, LTZC leverages a mature manufacturing system to control costs, providing clients with high-value solutions.

3. Reliable Delivery: With robust mass production capabilities, LTZC is able to meet the demanding delivery schedules of large-scale projects.

4. Rapid Technical Response: Our engineering team provides comprehensive support, including product selection assistance, drawing verification, installation guidance, and after-sales service.

VII. Conclusion

As the global photovoltaic market undergoes rapid expansion, highly reliable Solar Tracking Slewing Drives have emerged as essential components for maximizing power plant profitability. As a trusted manufacturer of slewing drives, LTZC leverages its mature manufacturing capabilities, rigorous quality standards, and extensive project experience to provide customers with stable and reliable solutions, including:

Slewing drives

Single-axis slewing drives

Dual-axis slewing drives

Slew drive application solutions across diverse industries

Moving forward, LTZC will continue to deepen its expertise in the field of solar tracking, serving the global new energy market with superior-quality products and helping customers achieve higher power generation yields and long-term investment value.

Contact LTZC to Customize Your Exclusive Slewing Drive
