Three-Row Roller Slewing Bearing for Heavy-Duty Ship Deck Cranes

1. The Importance of Slewing Bearings in the Maritime Industry

Amidst the expansion of the global maritime sector, marine equipment is undergoing continuous upgrades, evolving increasingly toward high-end and intelligent solutions. Deck cranes constitute critical machinery within the maritime industry; whether utilized for port lifting operations, offshore engineering vessels, bulk carriers, or container ships, these deck-mounted cranes perform essential tasks such as cargo loading and unloading, equipment hoisting, and offshore operational support. Within this machinery, the crane slewing bearing—serving as the core rotational component—directly determines the operational stability and safety of the entire unit.

The primary function of a slewing bearing is to connect the crane's upper structure to its lower foundation, thereby enabling the equipment to achieve full 360-degree rotation. Under actual operating conditions, the bearing is required to simultaneously withstand the following complex loads:

Axial Load: Verical pressure resulting from the hoisting of heavy objects.

Radial Load: Forces generated by wind, inertial effects, and eccentric loading of the equipment.

Tilting Moment: Rotational forces induced by eccentric loads and the extension of the crane boom.

For heavy-duty turntable bearings, these three types of loads frequently occur simultaneously and superimpose upon one another amidst dynamic fluctuations; this places extremely rigorous demands on the structural design of the bearing.

Furthermore, the maritime environment presents a unique set of challenges:

High Salt Spray Corrosion

High Humidity Environments

Impacts from Strong Winds and Waves

Prolonged Continuous Operation

These factors render standard bearings ill-equipped to meet the requirements for long-term, stable operation. Consequently, the Three-Row Roller Slewing Bearing—specifically engineered for offshore marine equipment—has emerged as the preferred solution for heavy-duty deck cranes.

2. Performance Advantages of LTZC Three-Row Roller Slewing Bearings

As a professional supplier of slewing bearings, LTZC possesses nearly 30 years of accumulated technical expertise in the field of heavy-duty slewing supports. The Three-Row Roller Slewing Bearings developed by LTZC have demonstrated exceptional performance in marine deck cranes.

2.1 Structural Principle of the Three-Row Roller Design

The three-row roller slewing bearing consists of three independent rows of rollers, each dedicated to bearing loads in a specific direction: the upper row of rollers bears axial loads, the lower row bears reverse axial loads, and the middle row bears radial loads. This structural design ensures a uniform distribution of loads, enabling the bearing to maintain stable operation even under high-load working conditions. This uniform load distribution constitutes the primary core advantage of the three-row roller slewing bearing when compared to bearings with other structural configurations.

2.2 High Load-Bearing Capacity

LTZC’s Three-Row Roller Slewing Bearings feature an optimized raceway design that ensures a more uniform distribution of contact stress, thereby significantly enhancing load-bearing capacity. Compared to traditional bearing structures, the axial load-bearing capacity is increased by over 30%, making it ideally suited for ultra-large-scale deck cranes. Thanks to its exceptional load-bearing strength, the three-row roller slewing bearing stands as a quintessential representative product among heavy-duty turntable bearings.

2.3 Superior Structural Rigidity and Stability

During offshore operations, cranes are frequently subjected to dynamic impact loads. LTZC enhances structural rigidity by increasing the contact surface area between the rollers and the raceways; this design ensures smoother operation, minimizes vibration, and facilitates more precise positioning during use.

2.4 High Durability and Long-Life Design

LTZC utilizes high-quality alloy steel materials combined with advanced heat treatment processes to enhance the bearing's wear resistance and fatigue strength. When coupled with proper maintenance practices, the service life of the bearing can be extended by more than 10 years.

2.5 Design Optimized for Marine Environments

Specifically tailored to the unique and demanding conditions of the marine industry, LTZC has implemented a multi-layer sealing structure, anti-corrosion coatings, and rust-inhibiting lubrication solutions. These measures specifically optimize the protective capabilities of the crane slewing bearings, allowing for extended maintenance intervals and reduced maintenance costs.

2.6 Diversified Design Capabilities

As an established supplier of slewing bearings, LTZC offers a comprehensive range of products, including external-geared, internal-geared, and non-geared configurations. Furthermore, we support the customization of non-standard dimensions, specialized materials and coatings, and design optimization tailored to extreme operating conditions.

3. LTZC Deck Crane Slewing Bearing Case Study

3.1 Project Background

An international offshore engineering company was commissioned to construct a large-scale, multi-purpose engineering vessel, equipped with a heavy-duty deck crane designed for offshore equipment lifting and module transport operations. This project imposed the following requirements on the crane's slewing bearing:

Ultra-high load-bearing capacity (heavy-lift tonnage)

High shock resistance

Capability for long-term, maintenance-free operation

Adaptability to extreme sea conditions

3.2 Technical Solution

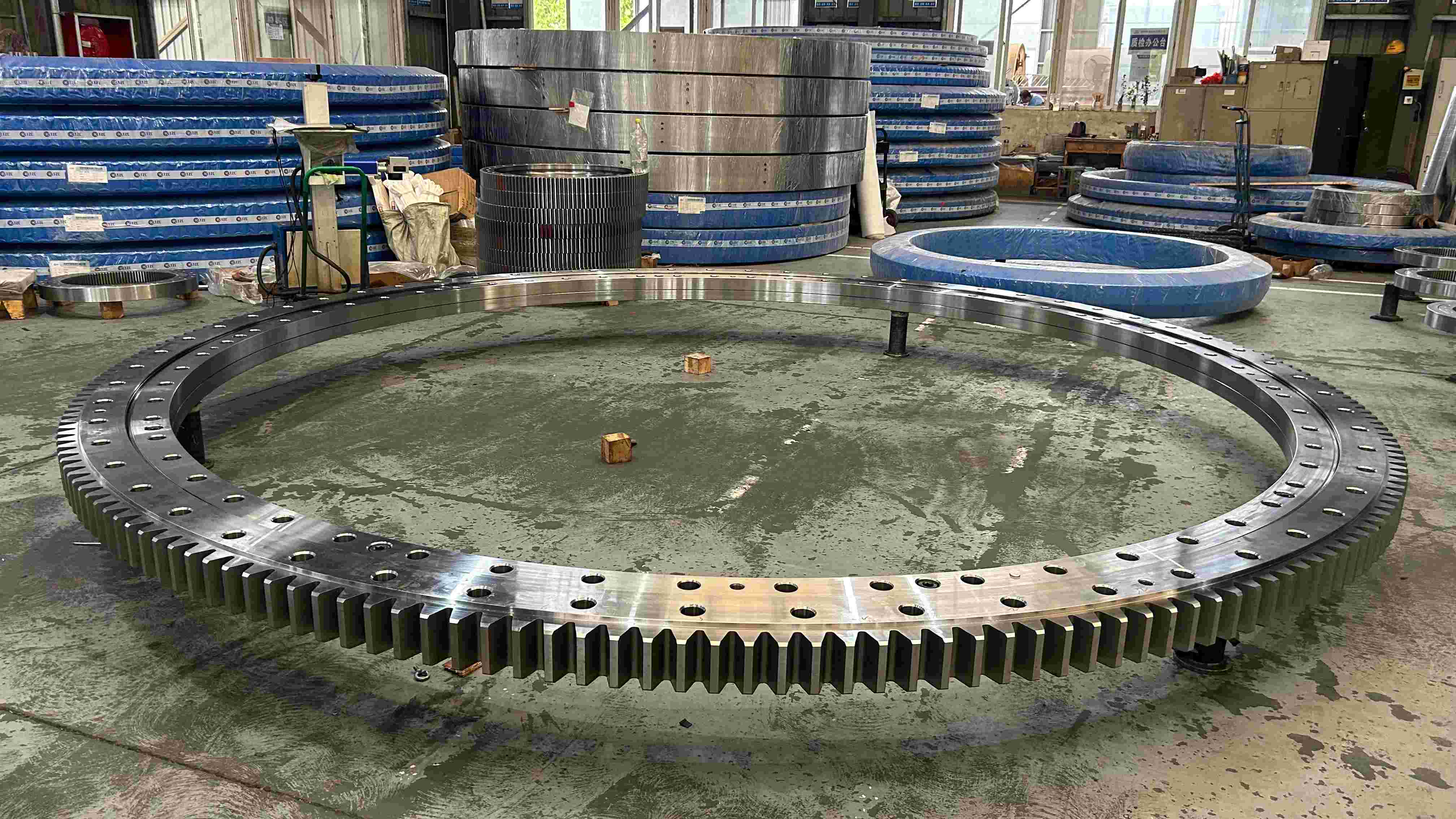

For this project, LTZC designed a customized three-row roller slewing bearing:

Outer Diameter: 3500 mm

Structure: External gear drive

Material: High-strength alloy steel

Heat Treatment: Deep-layer quenching process

Finite Element Analysis (FEA) was utilized to optimize the arrangement of the raceways and rollers, ensuring the bearing maintains stability even under extreme load conditions.

3.3 Actual Operational Performance

Since the equipment was commissioned, this heavy-duty turntable bearing has demonstrated exceptional performance:

Continuous, trouble-free operation for over 20 months

Stable slewing precision with no significant changes in clearance

Smooth operation maintained even in Sea State 6 conditions

Customer maintenance costs reduced by approximately 25%

3.4 Customer Feedback

The client stated:

“The three-row roller slewing bearing provided by LTZC exceeded our expectations in terms of reliability and durability; it is our preferred choice for future projects.”

Solving Technical Challenges in Bearings

4. Customized Crane Slewing Bearings and Comprehensive After-Sales Support

4.1 Customized Design Capabilities

LTZC fully recognizes that the requirements for different vessels and lifting equipment vary significantly; therefore, we offer comprehensive customization services:

Selecting the optimal structural design based on load calculations

Optimizing dimensions to fit available installation space

Choosing the appropriate gear ring configuration based on the drive mechanism

Tailoring protection schemes to suit specific environmental conditions

4.2 End-to-End Technical Support

LTZC is not merely a manufacturer, but a provider of complete solutions:

Initial Phase: Product selection calculations and solution design

Intermediate Phase: Manufacturing and quality control, featuring full process traceability

Final Phase: Installation guidance and commissioning support

4.3 Comprehensive After-Sales Service System

To ensure the long-term, stable operation of our clients' equipment, LTZC provides:

Recommendations for routine maintenance

Remote technical support

Rapid supply of spare parts

Fault analysis and optimization recommendations

A 3-to-5-year warranty period for maintenance

4.4 Global Service Capabilities

As an international supplier of slewing bearings, LTZC's products have been widely applied in:

Offshore engineering equipment

Construction machinery

Wind power generation systems

Port lifting equipment

Leveraging our consistent quality and high cost-effectiveness, LTZC has established an excellent reputation within the global market.

Conclusion

In the realm of heavy-duty marine equipment, the Three-Row Roller Slewing Bearing has emerged as an indispensable core component. Its exceptional load-bearing capacity, structural stability, and durability make it the optimal choice for heavy-duty turntable bearing applications.

As a specialized supplier of slewing bearings, LTZC leverages continuous technological innovation and extensive engineering expertise to deliver high-performance crane slewing bearing solutions to clients worldwide. Whether for standard products or custom projects, LTZC is dedicated to helping clients enhance equipment performance, reduce operational costs, and ensure long-term, reliable operation.

If you are seeking high-quality Three-Row Roller Slewing Bearings, LTZC is a partner you can trust.
